Name: 380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control
Brand: Shenzhen Honreal Technology Co.,Ltd
SKU: HR-S1825M
Price: 6200 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Dimensiones: El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef

Tipo de control: Pantalla táctil + PLC

Rango de temperatura: Ambiente - - 350 °C

Anchura máxima del PWB: 400 mm

Velocidad del transportador: Se aplicarán las siguientes medidas:

Capacidad del pote de la soldadura: 200 kg

Tipo de potencia: Las emisiones de gases de efecto invernadero de los Estados miembros se determinarán en función de l

Resaltar:

380V dual wave PCB soldering machine

automatic SMT wave soldering machine with PLC

lead-free precision wave soldering machine

Información básica

Lugar de origen: Porcelana

Nombre de la marca: HONREAL

Certificación: CE

Número de modelo: HR-S1825M

Pago y Envío Términos

Detalles de empaquetado: leña

Tiempo de entrega: 15 días de trabajo

Condiciones de pago: LC, T/T, Unión Occidental

Capacidad de la fuente: 100sets/mes

Galería

380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control

Descripción de producto

380V 60Hz SMT Mini Automatic Dual Wave PCB Through-hole Precision Wave Soldering Machine Lead Free With PLC Touchscreen Control

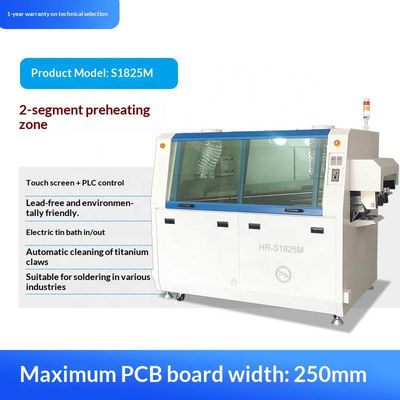

This advanced lead-free dual wave soldering machine features PLC touchscreen control, two-stage hot air heating, and automatic titanium claw cleaning. Designed for precision PCB soldering with maximum efficiency and minimal waste.

Technical Specifications

Model	Lead-Free Dual Wave Soldering Machine HR-S1825M
Configuration	Touchscreen Control Two-Stage Hot Air Heating Dual Wave Peaks Automatic Titanium Claw Cleaning, Electric In-and-Out of Solder Pot Spray Oscillation: Stepper Motor
Number of Wave Peaks	2 Wave Peaks
Maximum Board Width	Max 250mm
Solder Pot Capacity	200KG
Preheating Length	800mm (Two Stages)
Wave Peak Height	12mm
Component Lead Length on Board	10mm
PCB Transportation Height	750±20mm
Total Power	11KW
Power Supply	3-Phase 5-Wire System, 380V 50HZ
Control Method	Touchscreen
Rack Dimensions	1800×1200×1500mm
Overall Dimensions	2600×1200×1600mm
PCB Transportation Speed	0-1.8 m/min
Preheating Zone Temperature	Room Temperature - 180°C
Heating Method	100% Hot Air
Cooling Method	Axial Fan Cooling
Solder Pot Temperature	Room Temperature - 300°C
Transportation Direction	Left -> Right
Temperature Control Method	PID + SSR
Overall Machine Control Method	Mitsubishi PLC + Touchscreen

Key Features

Flux Capacity: Max 5.2L with stepper motor spraying system
Extended 2-stage hot air preheating zone (800mm total length)
Precision temperature control (PID) with ±2°C accuracy
Low oxidation design: Lead-free solder dross ≤ 1.5kg/8h
Automatic needle claw cleaning device
High-strength wear-resistant guide rails with 0.5mm parallelism
Mitsubishi PLC control with touchscreen interface
Streamlined frame structure with fully enclosed maintenance doors

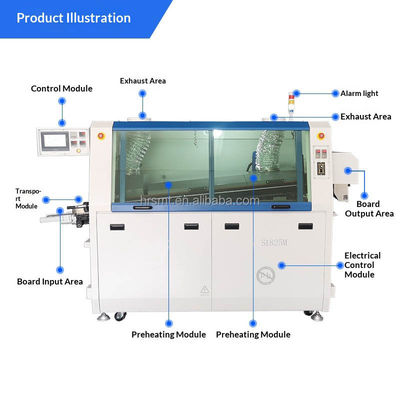

Product Images

Work Environment Requirements

Ventilated and dry workshop with flat floor
Ambient temperature: 5-45°C
Stable, well-grounded power supply with rated current

Before powering on: Verify power rating, proper grounding, and secure electrical connections.

About Shenzhen Honreal Technology Co., Ltd

National high-tech enterprise specializing in SMT equipment R&D, production, and sales. Serving top 500 electronic companies worldwide with registered capital of 5 million. Our experienced technical team focuses on innovation to meet diverse customer needs through valuable services.

Frequently Asked Questions

Q: How can you guarantee your sales' quality?

A: We guarantee rigorous testing of every machine before delivery to ensure excellent performance.

Q: How is the training?

A: Engineers can train at our facility or easily learn through provided training videos and user manual included with the machine.

Q: Can I have my logo on the product?

A: We fully support free customized logo service - just provide your requirements.

Q: Is it hard to use these machines?

A: No, most clients learn operation within 2 days.

Packaging
