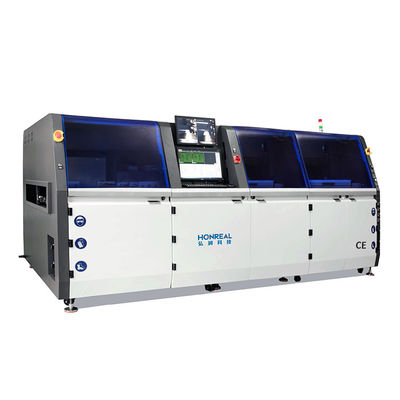

Name: In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
Brand: Shenzhen Honreal Technology Co.,Ltd
SKU: HRX-31D
Price: 45,750.00 USD
Availability: InStock

MOQ:	1 conjunto
Precio:	Negociable
Standard Packaging:	leña
Delivery Period:	45 días de trabajo
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	100sets/mes

Información detallada

Product Description

Información detallada

Lugar de origen

PORCELANA

Nombre de la marca

HONREAL

Certificación

Número de modelo

HRX-31D

Documento

Honreal--Double module sele...p).pdf

Presión de N2 requerida:

0.4-0.6MPA

Nombre del producto:

Soldadura de olas selectivas en línea HRX-31D

Categoría de productos:

Máquina de soldadura por ondas selectivas SMT

Peso neto:

2500 kg

Eje de posición:

X, Y, Z

Dimensión:

L4193 x W1645 x H1630 mm

Tamaño máximo del portador:

L580 x W460 mm

Método de precalentamiento:

Precalentamiento de aire caliente superior; Precalentamiento infrarrojo de ondas cortas inferiores

Resaltar:

selective wave soldering machine HRX-31D

two pot selective solder machine

SMT wave soldering machine with warranty

Product Description

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

High Productivity In-line Selective Soldering Machine HRX-31D

Advanced selective soldering solution with high efficiency and quality performance.

Key Advantages

Fully functional online model with spray, preheating and welding three-stage configuration
Segmented independent PCB transport guide for improved production efficiency
High welding quality with improved pass rate
Comprehensive preheating system with lower IR, upper hot air, and upper IR heat compensation
Modular SMEMA online transportation design for flexible line formation
Full PC control with parameter saving capability for repeatable soldering quality

Technical Specifications

Parameter	Value
Equipment type	HRX-31D
Machine size	L4193 x W1645 x H1630mm
Total machine power	35kw
Machine operating power	9-12kw
Power source	Three-phase five-wire system 380V
Net weight	2500KG
Air source pressure requirements	0.4~0.6Mpa
Nitrogen source pressure requirements	0.4~0.6Mpa
Nitrogen source flow requirements	≥4 cubic/hour
Nitrogen source purity requirements	≥99.999%
Communication interface	SMEMA

Transport Module Specifications

Feature	Specification
Maximum PCB size	L508 x W460mm
PCB board edge	More than 5mm
Transport direction	Horizontal from left to right
Headroom on PCB board	120mm
PCB board bottom clearance	60mm
Transport bearing capacity	≥10Kg
Transport height	900±30mm

Software Features

Independent software system with complete intellectual property rights
Live solder process display via camera
Critical parameter monitoring (temperature, speed, pressure)
Offline programming capability
Multiple programming methods (Gerber, camera scanning, PCBA scanning)
Automatic wave peak height correction
Comprehensive PCB menu storage for historical data tracking
LOG function with 3-level access rights

Support and Services

Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:

Remote technical assistance via phone or email
On-site support services including installation, training, and maintenance
Dedicated technical team for peak performance optimization
