HR-10 Automatic Solder Dross Separator 10KG Capacity 0.6KW
  • name
  • name
  • name
  • name

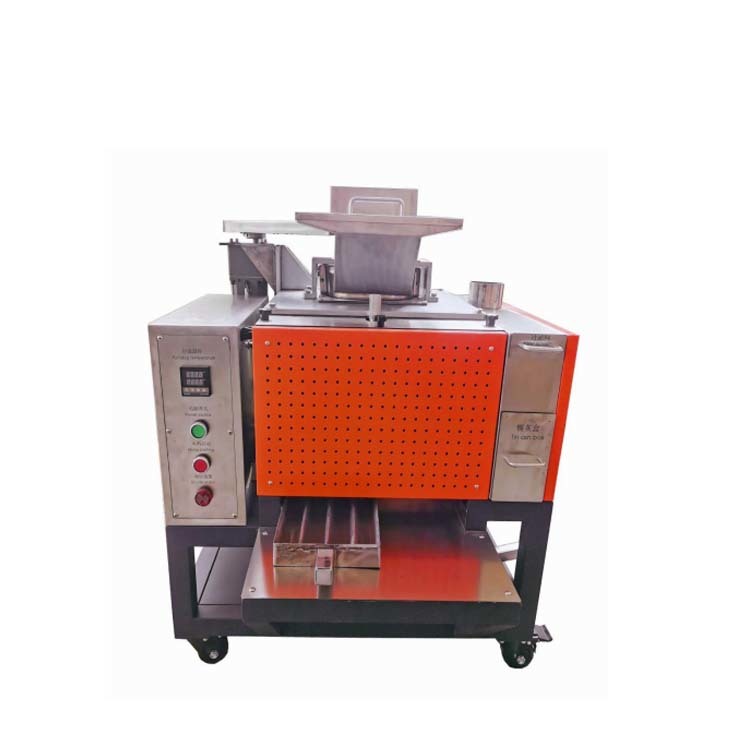

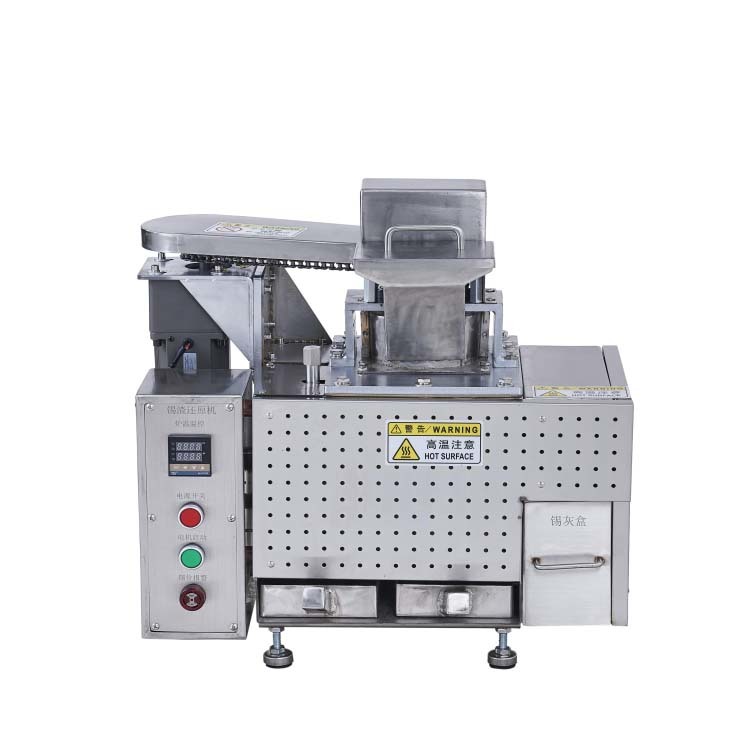

HR-10 Automatic Solder Dross Separator 10KG Capacity 0.6KW

MOQ: 1 conjunto
Precio: USD 3980-4500 Per Set
Standard Packaging: leña
Delivery Period: 5-10 días de trabajo
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100sets/mes
Información detallada
Product Description
Información detallada
Lugar de origen
Porcelana
Nombre de la marca
HONREAL
Número de modelo
El valor de las emisiones de CO2
ixing Capacidad de estaño de fondo:
10 kg
Potencia de calefacción de mezcla:
0.6kw
Alcance de la temperatura:
0-350 °C
ALIMENTACIÓN:
Continuo 3-4 kg/60 minutos
Mezcla:
1φ 220V 90W
Resaltar:

automatic solder dross separator 10kg

,

solder dross separator 0.6kw

,

SMT wave soldering machine with warranty

Product Description
PCB Manufacturing Wave Soldering in Line Automatic Solder Tin Oxides Dross Reduction Smelting Machine
Product Specifications
Attribute Value
Mixing Capacity of Bottom Tin 10KG
Mixing Heating Power 0.6KW
Temperature Scope 0-350℃
Feeding Continuous 3-4kg/60min
Mixing motor 1φ 220V 90W
Equipment Overview

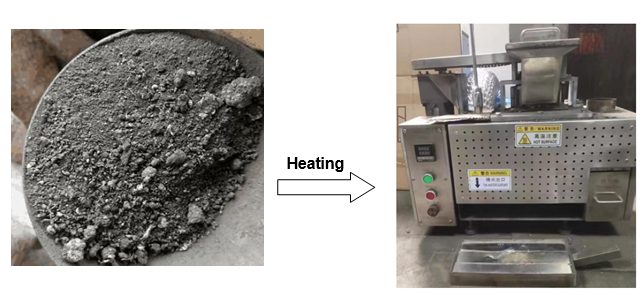

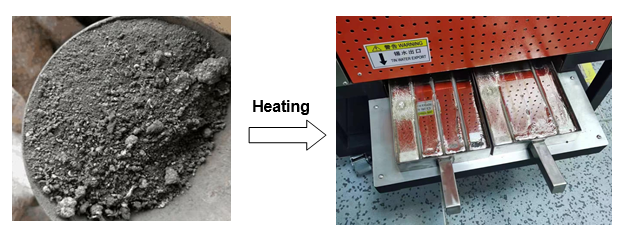

The solder dross recycling machine efficiently reduces and recycles oxides (solder dross) generated during wave soldering processes through heating technology. This solution lowers production costs, enhances environmental sustainability, and improves product quality.

HR-10 Key Features
  • High reduction rate for tin dross (dependent on tin content)
  • Chemical-free process directly separates high-quality solder
  • Button-controlled operation with digital temperature regulation
  • Full stainless steel cabinet for easy cleaning
  • Special 316 stainless steel stirring zone
  • External heating tube ensures complete tin dross melting
  • Electronic liquid level alarm and manual tin discharge
  • Automatic separation of tin and tin ash into collection devices
  • Compact, lightweight design for easy mobility
  • Optional independent smoke filtration system
Technical Parameters
Item Parameter
Model HR-10
Mixing motor 1φ 220V 90W
Mixing Capacity of Bottom Tin Approximately 10-12KG
Temperature Scope Room temperature -360℃
Heating-up time 30MIN
Feeding time Continuous 3-5kg/60min
Dimension 580(L)*320(W)*600(H)MM
Total Power Consumption 2.2KW
Normal running power 0.6KW
Power 1φ220V 50Hz
HR-10 Automatic Solder Dross Separator 10KG Capacity 0.6KW 0 HR-10 Automatic Solder Dross Separator 10KG Capacity 0.6KW 1
Our Service Commitment
  • Pre-consultation: Professional SMT solutions for full production lines
  • Factory Warranty: Comprehensive one-year warranty service
  • Installation: On-site setup and commissioning for immediate production
  • Technical Training: Three-level professional training program
  • Technical Support: 24/7 assistance available
  • Software Upgrade: Lifetime free updates for all products
Certifications
HR-10 Automatic Solder Dross Separator 10KG Capacity 0.6KW 2
Frequently Asked Questions
Q: Is this machine easy to operate for first-time users?
A: Comprehensive English manuals and instructional videos are provided. Additional support is available via email, Skype, phone, or online service.
Q: What training is provided?
A: Engineers can receive on-site training at our facility or follow detailed training videos and manuals included with the machine.
Q: Can I add my company logo?
A: Custom logo service is available free of charge - simply provide your requirements.
Q: What is the purchasing process?
A: Simple 6-step process: consultation → price negotiation → proforma invoice → payment → quality check → shipping by air or sea.
Packaging & Shipping
HR-10 Automatic Solder Dross Separator 10KG Capacity 0.6KW 3
Contact Information
Company: Shenzhen Honreal Technology CO.,Ltd.
Address: No15, Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel: +86 755 2302 0279
Fax: +86 755 2330 6782
Zip code: 518125
Skype/Whatsapp/Wechat: +8613715227009
Email: Monica@szhonreal.com, Judy@szhonreal.com
